Roof pitch to degrees equivalents

Roof Pitch Degrees

Roof Pitch to Degrees Equivalents

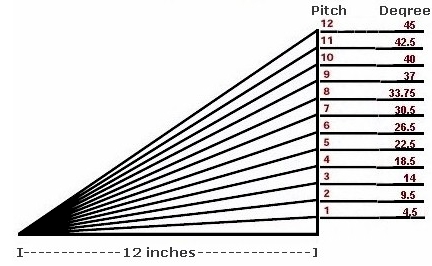

This drawing demonstrates how many degrees rise for each pitch of a typical roof. Look at the column labeled pitch, then look under degrees to get the corresponding amount of degrees. Example; 8/12 pitch = 33.75 degrees.

To see Roof pitch Visual Examples go here
How to determine pitch ? Go here
Roof pitch degrees equilvents
