Roof pitch visual examples

Visual Roof Pitch Examples

Roof Pitch to Angle Calculator (enter pitch in the first box – calculation is automatic)

Roof Span: ft. in.Roof Rise: ft. in.

Roof Pitch = / 12¨



Roof Pitches 4/12 thru 12/12

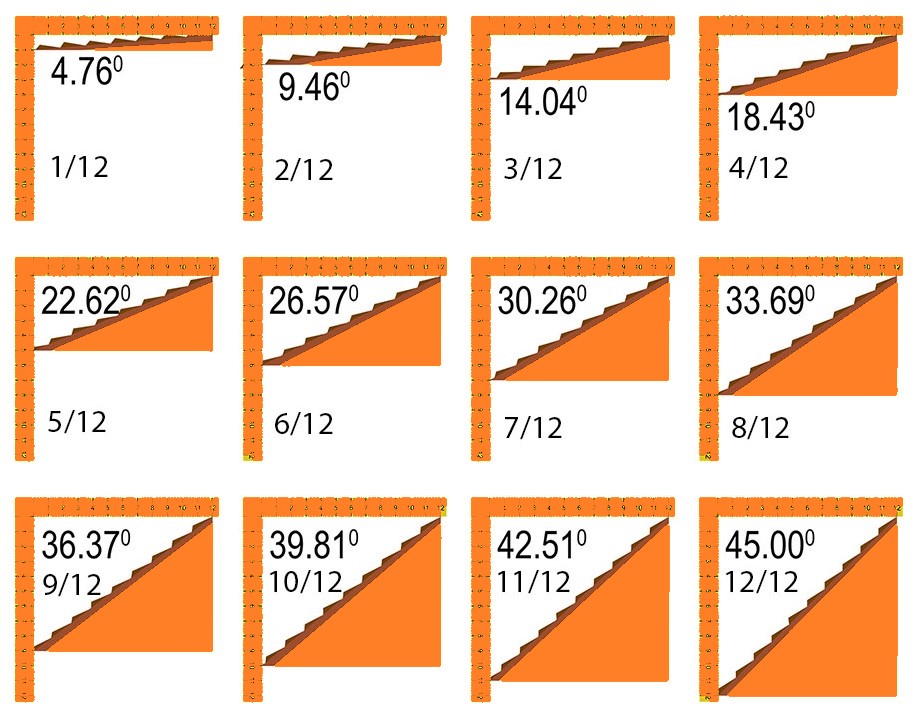

The examples below provide visual examples of roof pitch.
To determine your roof pitch calculator
Other terminology for roof pitch are; Roof Slope, Roof Angle and Pitch Degrees.
To see roof pitch to degrees equivalents roof calculator.

4/12 Pitch 18½° Details  5/12 Pitch 22½° Details
4/12 roof pitch to angle=18.43 degrees
4/12 roof pitch to angle 18.43 degrees
5/12 roof pitch to angle=22.62 degrees
5/12 roof pitch to angle 22.62 degrees
6/12 Pitch 26½° Details  7/12 Pitch 30¼° Details
6/12 Roof Pitch 26½° Details
6/12 Roof Pitch 26½° Details
7/12 Pitch 30.26° Details
7/12 Pitch 30.26° Details
8/12 Pitch 33¾° Details9/12 Pitch 37° Details
8/12 roof pitch to angle=33.69 degrees
8/12 roof pitch to angle = 33.69 degrees
9/12 Pitch 37° Details
9/12 Pitch 37° Details
10/12 Pitch 40° Details12/12 Pitch 45° Details
10/12 Pitch 40° Details
10/12 Pitch 40° Details
12/12 Roof Pitch 45° Degrees
12/12 Roof Pitch 45° Degrees

One Comment

  1. I have 10/12 hip roof in back but but looking from back side the left is 12/12 pitch because of garage in front, i want to put 36’×16′ roof on back porch starting from back left side, what kind of trusses could i use? House is 36′ wide 70′ long
